FD80B Digital Pressure Transmitter IP65 Weatherproof Factory Direct Supply
FD80B universal pressure transmitter developed by FRD SENSOR is a stable and reliable industrial pressure measuring instrument. Adopting advanced digital compensation technology, the sensor core can effectively eliminate measurement deviation caused by temperature fluctuation and nonlinear change. The whole machine is equipped with high-level weatherproof housing, matching standard explosion-proof structure, fully compliant with industrial explosion safety standards. Equipped with on-site operation keys, users can complete parameter reset and calibration without extra equipment. Multiple standard signal output modes are available to match different control system access demands, with laser marking integrated nameplate for clear and durable identification.
Features
- Supports various pressure type measurement, including gauge pressure, absolute pressure and negative pressure
- Built-in digital temperature compensation and nonlinear correction function
- High protection grade shell, adaptable to outdoor and severe field working conditions
- Complete explosion-proof certification, safe deployment in flammable and explosive working environments
- Independent on-site key operation, convenient zero point adjustment on site
- Multiple signal output options, compatible with mainstream industrial control equipment
Products Parameters
| Range |
0-5kPa~260MPa |
| Accuracy |
0.1%F.S, 0.25%F.S, 0.5%F.S (optional) |
| Pressure Type |
Gauge Pressure |
| Power Supply |
10V~30V DC (24V DC recommended) |
| Output Signal |
4mA~20mA DC, 1V~5V DC, RS485, etc. (optional) |
| Communication Protocols |
MODBUS RTU Protocol, HART Protocol |
| Long-term Stability |
0.2%F.S/year |
| Operating Temperature |
-20℃~70℃ |
| Electrical Connection |
M20*1.5(F) standard, custom options available |
| Protection Rating |
IP65 |
| Warranty Period |
12 months |
Applications
- Industrial process control: Pressure closed-loop control for metallurgy, building materials and light industry.
- Oil & gas exploitation: Real-time pressure monitoring of drilling platforms and oil transmission pipelines.
- Food & medical industry: Pressure detection of food processing and medical equipment.

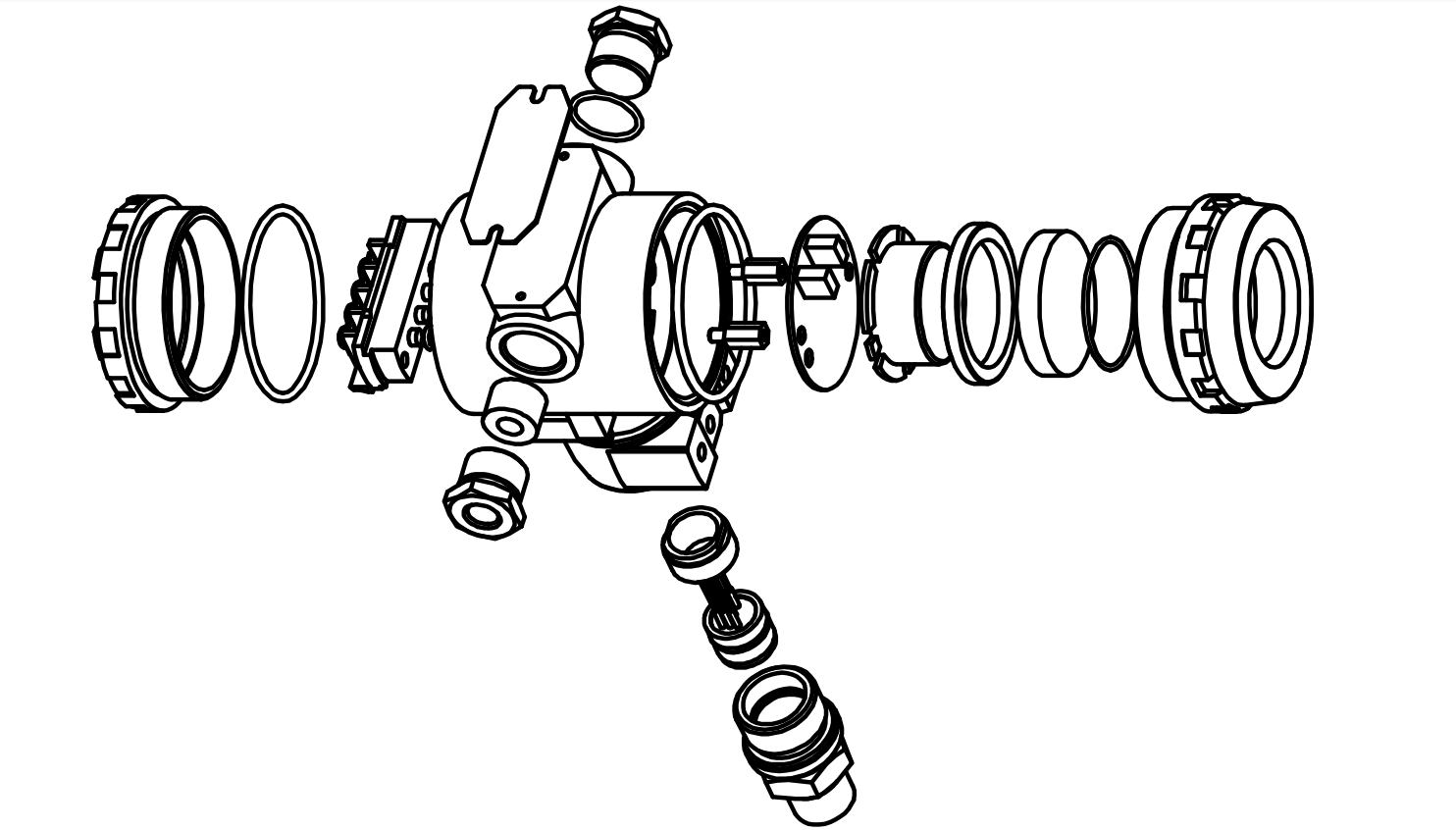

Product Drawing
Product dimensions, specifications and parameters are for reference only. For specific details, please contact us, and we will provide you with professional answers.

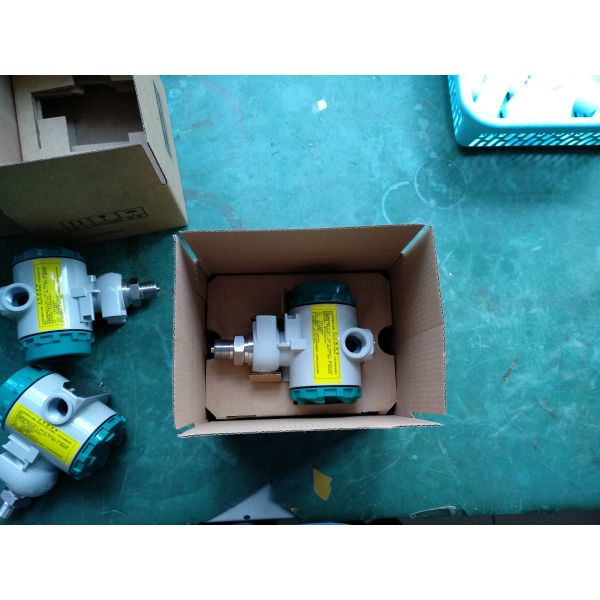

Packaging
FAQ
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: How long is the delivery time for the product?
A: We will provide a specific delivery time based on your order quantity. For orders of 1 to 30 pcs, the delivery time is approximately 2 to 7 working days.
Q: How do you control your quality ?
A: Full inspection process (Incoming Material Screening, Process Control, and Performance Verification) to ensure quality + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: We hold 6 invention patents, possess certifications for CE, ATEX, and SIL, and are a member of the HART Protocol. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide ODM/OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
